Optional Lab: Logistic Regression¶
In this ungraded lab, you will
- explore the sigmoid function (also known as the logistic function)
- explore logistic regression; which uses the sigmoid function
import numpy as np
%matplotlib widget
import matplotlib.pyplot as plt
from plt_one_addpt_onclick import plt_one_addpt_onclick
from lab_utils_common import draw_vthresh
plt.style.use('./deeplearning.mplstyle')
Sigmoid or Logistic Function¶
As discussed in the lecture videos, for a classification task, we can start by using our linear regression model, $f_{\mathbf{w},b}(\mathbf{x}^{(i)}) = \mathbf{w} \cdot \mathbf{x}^{(i)} + b$, to predict $y$ given $x$.
- However, we would like the predictions of our classification model to be between 0 and 1 since our output variable $y$ is either 0 or 1.
- This can be accomplished by using a "sigmoid function" which maps all input values to values between 0 and 1.
Let's implement the sigmoid function and see this for ourselves.

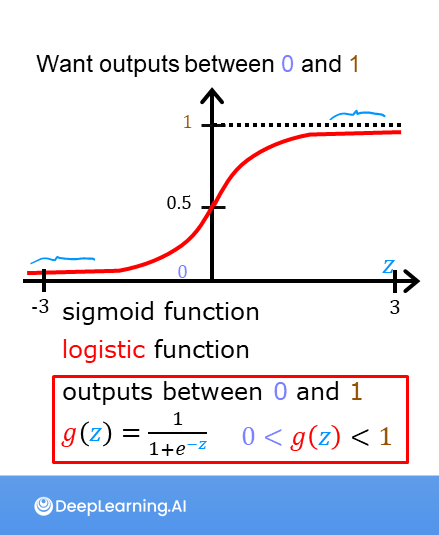

Formula for Sigmoid function¶
The formula for a sigmoid function is as follows -
$g(z) = \frac{1}{1+e^{-z}}\tag{1}$
In the case of logistic regression, z (the input to the sigmoid function), is the output of a linear regression model.
- In the case of a single example, $z$ is scalar.
- in the case of multiple examples, $z$ may be a vector consisting of $m$ values, one for each example.
- The implementation of the sigmoid function should cover both of these potential input formats. Let's implement this in Python.
NumPy has a function called exp(), which offers a convenient way to calculate the exponential ( $e^{z}$) of all elements in the input array (z).
It also works with a single number as an input, as shown below.
# Input is an array.
input_array = np.array([1,2,3])
exp_array = np.exp(input_array)
print("Input to exp:", input_array)
print("Output of exp:", exp_array)
# Input is a single number
input_val = 1
exp_val = np.exp(input_val)
print("Input to exp:", input_val)
print("Output of exp:", exp_val)
Input to exp: [1 2 3] Output of exp: [ 2.72 7.39 20.09] Input to exp: 1 Output of exp: 2.718281828459045
The sigmoid function is implemented in python as shown in the cell below.
def sigmoid(z):
"""
Compute the sigmoid of z
Args:
z (ndarray): A scalar, numpy array of any size.
Returns:
g (ndarray): sigmoid(z), with the same shape as z
"""
g = 1/(1+np.exp(-z))
return g
Let's see what the output of this function is for various value of z
# Generate an array of evenly spaced values between -10 and 10
z_tmp = np.arange(-10,11)
# Use the function implemented above to get the sigmoid values
y = sigmoid(z_tmp)
# Code for pretty printing the two arrays next to each other
np.set_printoptions(precision=3)
print("Input (z), Output (sigmoid(z))")
print(np.c_[z_tmp, y])
Input (z), Output (sigmoid(z)) [[-1.000e+01 4.540e-05] [-9.000e+00 1.234e-04] [-8.000e+00 3.354e-04] [-7.000e+00 9.111e-04] [-6.000e+00 2.473e-03] [-5.000e+00 6.693e-03] [-4.000e+00 1.799e-02] [-3.000e+00 4.743e-02] [-2.000e+00 1.192e-01] [-1.000e+00 2.689e-01] [ 0.000e+00 5.000e-01] [ 1.000e+00 7.311e-01] [ 2.000e+00 8.808e-01] [ 3.000e+00 9.526e-01] [ 4.000e+00 9.820e-01] [ 5.000e+00 9.933e-01] [ 6.000e+00 9.975e-01] [ 7.000e+00 9.991e-01] [ 8.000e+00 9.997e-01] [ 9.000e+00 9.999e-01] [ 1.000e+01 1.000e+00]]
The values in the left column are z, and the values in the right column are sigmoid(z). As you can see, the input values to the sigmoid range from -10 to 10, and the output values range from 0 to 1.
Now, let's try to plot this function using the matplotlib library.
# Plot z vs sigmoid(z)
fig,ax = plt.subplots(1,1,figsize=(5,3))
ax.plot(z_tmp, y, c="b")
ax.set_title("Sigmoid function")
ax.set_ylabel('sigmoid(z)')
ax.set_xlabel('z')
draw_vthresh(ax,0)
As you can see, the sigmoid function approaches 0 as z goes to large negative values and approaches 1 as z goes to large positive values.
Logistic Regression¶

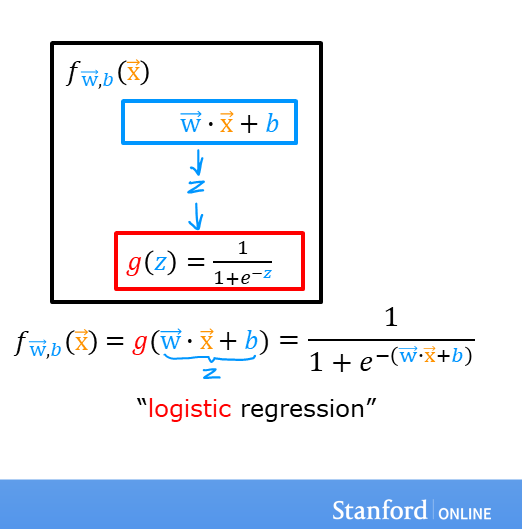

A logistic regression model applies the sigmoid to the familiar linear regression model as shown below:
$$ f_{\mathbf{w},b}(\mathbf{x}^{(i)}) = g(\mathbf{w} \cdot \mathbf{x}^{(i)} + b ) \tag{2} $$
where
$g(z) = \frac{1}{1+e^{-z}}\tag{3}$
Let's apply logistic regression to the categorical data example of tumor classification.
First, load the examples and initial values for the parameters.
x_train = np.array([0., 1, 2, 3, 4, 5])
y_train = np.array([0, 0, 0, 1, 1, 1])
w_in = np.zeros((1))
b_in = 0
Try the following steps:
- Click on 'Run Logistic Regression' to find the best logistic regression model for the given training data
- Note the resulting model fits the data quite well.
- Note, the orange line is '$z$' or $\mathbf{w} \cdot \mathbf{x}^{(i)} + b$ above. It does not match the line in a linear regression model. Further improve these results by applying a threshold.
- Tick the box on the 'Toggle 0.5 threshold' to show the predictions if a threshold is applied.
- These predictions look good. The predictions match the data
- Now, add further data points in the large tumor size range (near 10), and re-run logistic regression.
- unlike the linear regression model, this model continues to make correct predictions
plt.close('all')
addpt = plt_one_addpt_onclick( x_train,y_train, w_in, b_in, logistic=True)
--------------------------------------------------------------------------- AttributeError Traceback (most recent call last) Cell In[7], line 2 1 plt.close('all') ----> 2 addpt = plt_one_addpt_onclick( x_train,y_train, w_in, b_in, logistic=True) File D:\AI\Machine-Learning-Specialization-Coursera\C1 - Supervised Machine Learning - Regression and Classification\week3\Optional Labs\plt_one_addpt_onclick.py:66, in plt_one_addpt_onclick.__init__(self, x, y, w, b, logistic) 64 self.bthresh = CheckButtons(axthresh, ('Toggle 0.5 threshold (after regression)',)) 65 self.bthresh.on_clicked(self.thresh) ---> 66 self.resize_sq(self.bthresh) File D:\AI\Machine-Learning-Specialization-Coursera\C1 - Supervised Machine Learning - Regression and Classification\week3\Optional Labs\plt_one_addpt_onclick.py:179, in plt_one_addpt_onclick.resize_sq(self, bcid) 171 """ resizes the check box """ 172 #future reference 173 #print(f"width : {bcid.rectangles[0].get_width()}") 174 #print(f"height : {bcid.rectangles[0].get_height()}") 175 #print(f"xy : {bcid.rectangles[0].get_xy()}") 176 #print(f"bb : {bcid.rectangles[0].get_bbox()}") 177 #print(f"points : {bcid.rectangles[0].get_bbox().get_points()}") #[[xmin,ymin],[xmax,ymax]] --> 179 h = bcid.rectangles[0].get_height() 180 bcid.rectangles[0].set_height(3*h) 182 ymax = bcid.rectangles[0].get_bbox().y1 AttributeError: 'CheckButtons' object has no attribute 'rectangles'
Congratulations!¶
You have explored the use of the sigmoid function in logistic regression.
